REEFBREEDERS MERIDIAN MOUNTING SOLUTIONS

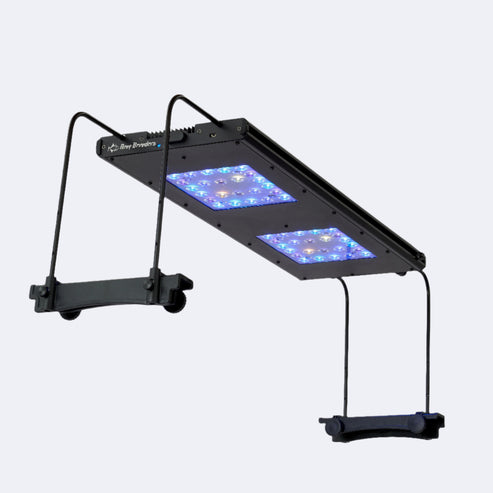

The Meridian Side-of-Tank Mounts are a practical and adjustable solution for mounting your Meridian light. These sturdy legs extend from either side of the light, making it compatible with tanks up to 16 inches longer than the light itself.

Features:

• Adjustable Height: Offers a mounting range of 5 to 10 inches above your tank rim to suit your setup.
• Extended Reach: Each leg extends up to 8 inches per side (16 inches total), attaching securely to your tank.
• Reversible Design: Two mounting options allow for a maximum height of 10 inches on one side or 9 inches on the other above the waterline.
• Fits Most Tanks: Includes U clamps compatible with tank trims up to 1 inch thick. They may also be installed flat-side down on Euro-Brace trims.
• Complete Kit: Comes with 4 black mounting legs, 2 U clamps, and a hardware/screw set for easy installation.

The Meridian Side-of-Tank Mounts provide a straightforward and reliable way to position your light for optimal performance and tank coverage.

This set of T-Tracks allows for low profile mounting where space is a limiting factor. Each set is designed to be screwed into the top of a wooden canopy or other flat surface. This maximizes available space an increases the mounting height of your lights, while leaving enough space above your light for air circulation.

The tracks are available in various lengths for different canopy sizes, and each set includes:

• 2 Silver Anodized Aluminum T-Tracks
• 4 T Track Nuts
• 4 XL Bolts for the Photon/Meridian
• Counter-Sunk Mounting Screws (Quantity Varies based on length of Track)

Each Photon or Meridian Requires a minimum of 4 Nut/Bolt combos to mount- and Edge Bars require 2 Nut/Bolt combos for mounting. Both the Meridian and Edge Bars can be mounted together on the same T track set.

For example, to mount a Meridian with 2 edge bars, you will need a T Track set with 4 Nuts/Bolts, plus and additional 4 Nuts/Bolts- 2 per Edge Bar.

The T-Tracks measure 1.2" (30mm) wide x 0.51" (13mm) tall. They are available in 3 lengths: 11.81" (30cm), 15.75" (40cm), and 21.65" (55cm

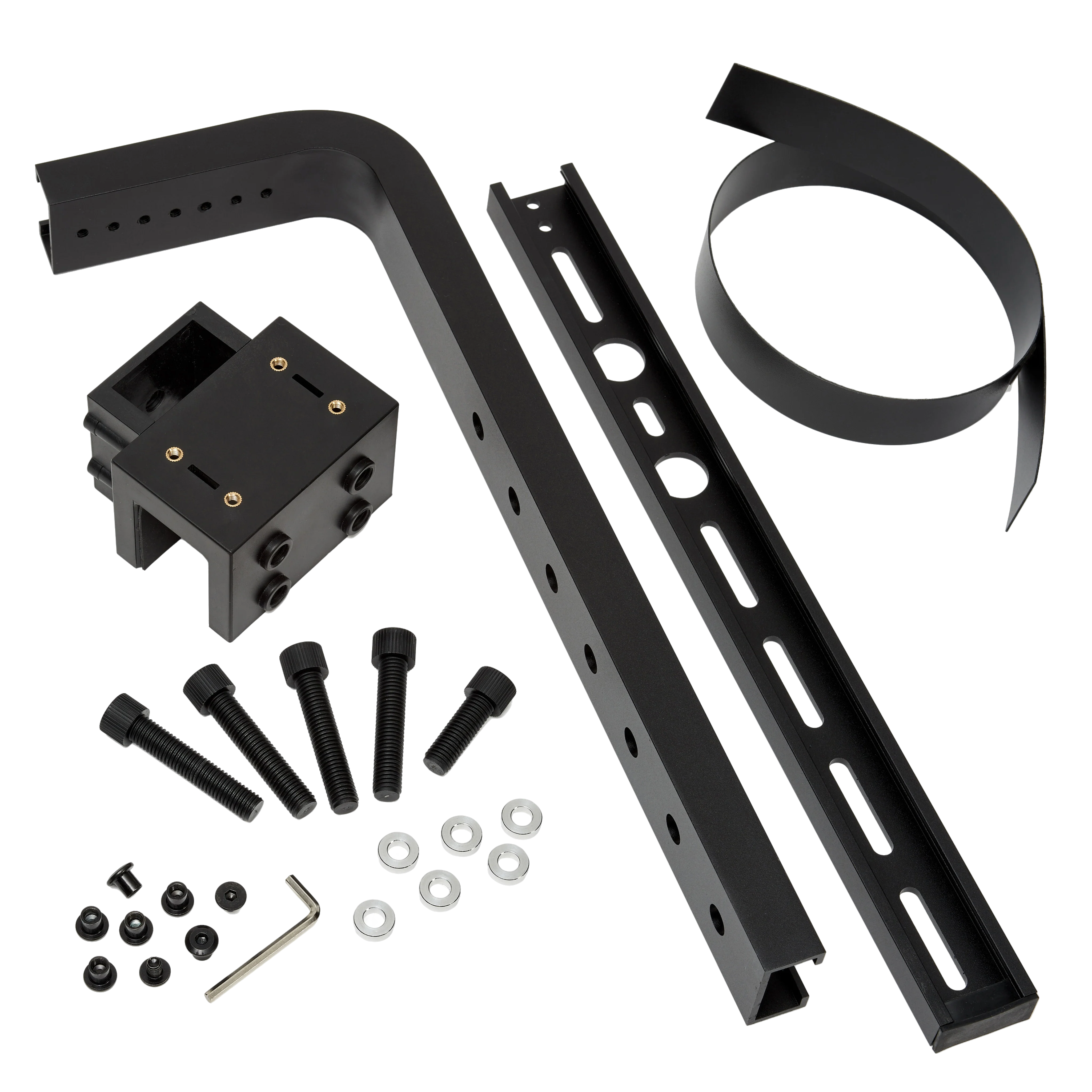

Back of tank mount designed for the Meridian and Meridian Edge.

Compatible with most large, quality built euro-brace tanks. Please ensure that the section of Euro-bracing you mount to is strong enough to handle the weight of your lights plus the mount under torsion.
