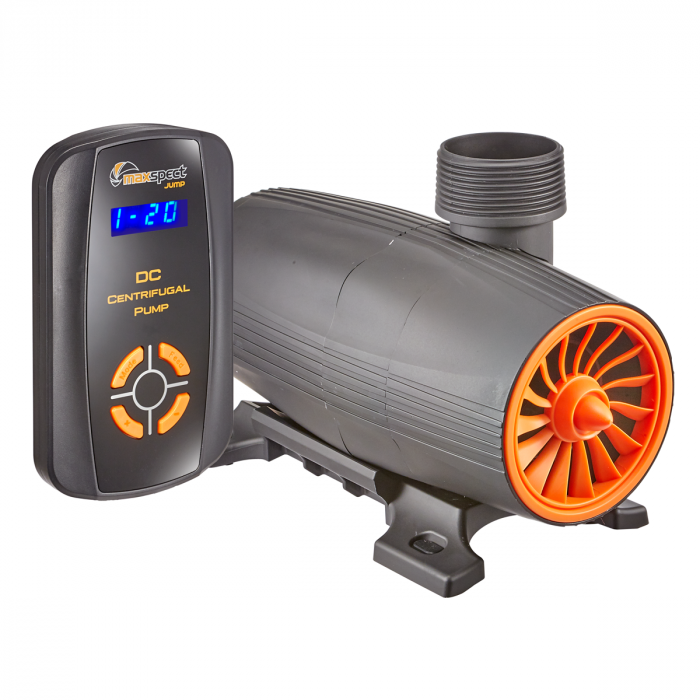

Maxspect Jump DC Return Pump with controller
Maxspect Jump DC Return Pump - product photo
Maxspect Jump DC Return Pump - side angle view
Maxspect Jump DC Return Pump - additional product view
Maxspect Jump DC Return Pump with external controller
Maxspect Jump DC Pump flow rate vs head height performance chart
Sine Wave current pattern diagram
Sine Wave technology decibel noise level chart
Traditional square wave current pattern diagram
Traditional pump decibel noise level chart

Maxspect Jump DC Return Pump

$209.99 USD
by MAXSPECT
Model
Low stock - 1 available

Maxspect Jump DC Return Pump

The Maxspect Jump DC Series delivers powerful, precisely adjustable return flow at an affordable price point. Each pump is built around Sine Wave Technology — a smoother, pendulum-like alternating current drive that runs noticeably quieter and with less vibration than pumps using traditional square-wave DC drivers. The result is strong, silent flow that won't disturb a display tank or a bedroom-adjacent fish room.

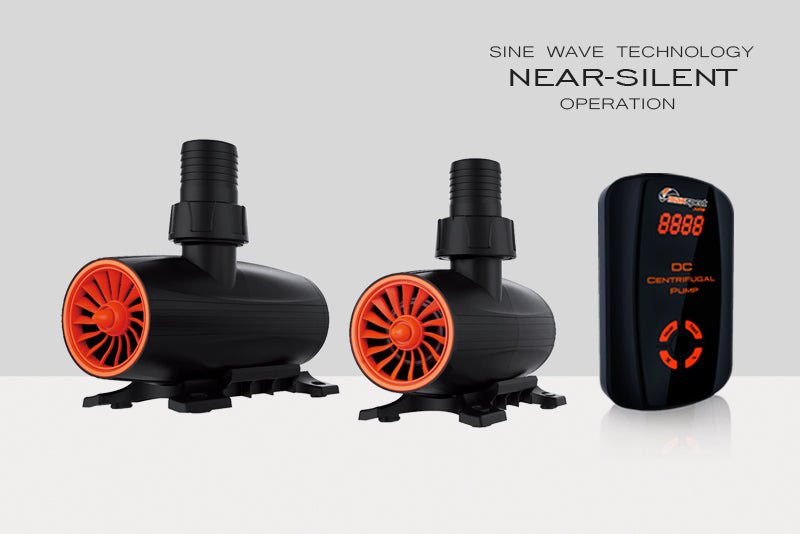

Every Jump DC pump ships with a four-button external controller featuring an LED display, 20 selectable flow speeds, a pulse (wave) mode for simulated tidal flow, and a programmable feed mode that temporarily reduces flow for easy feeding — all without an app, Bluetooth, or WiFi setup required. These are submersible pumps only, rated for both freshwater and saltwater use, and each includes a standard 1-year manufacturer warranty.

Why Sine Wave Technology matters

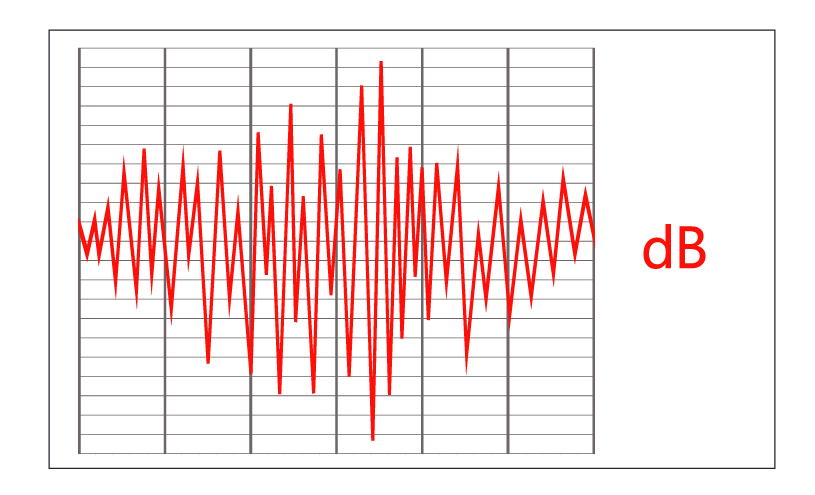

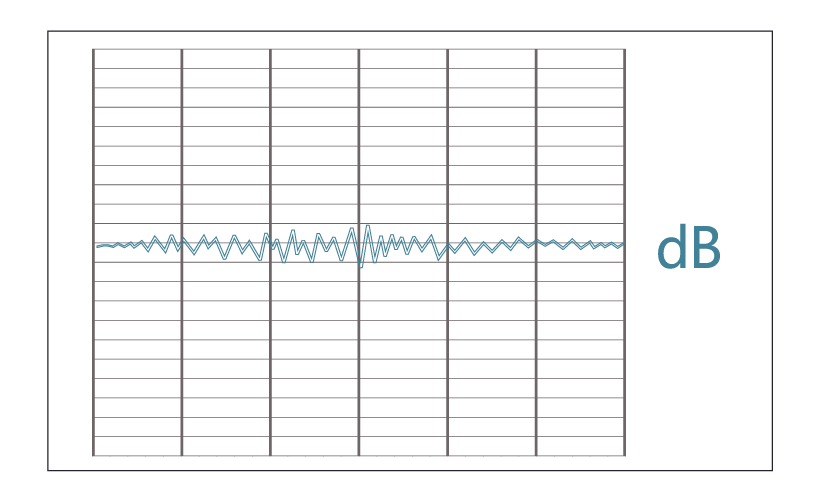

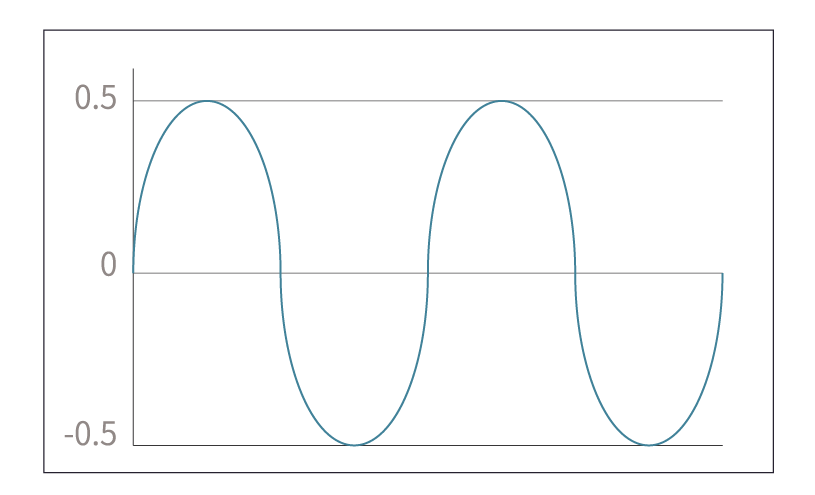

Traditional DC pump drivers switch current on and off abruptly, creating a "square wave" that causes audible motor hum and mechanical vibration. Maxspect's Sine Wave drive instead ramps current up and down smoothly, like a pendulum, which significantly cuts motor noise (see decibel comparison chart) while still delivering full, controllable power.

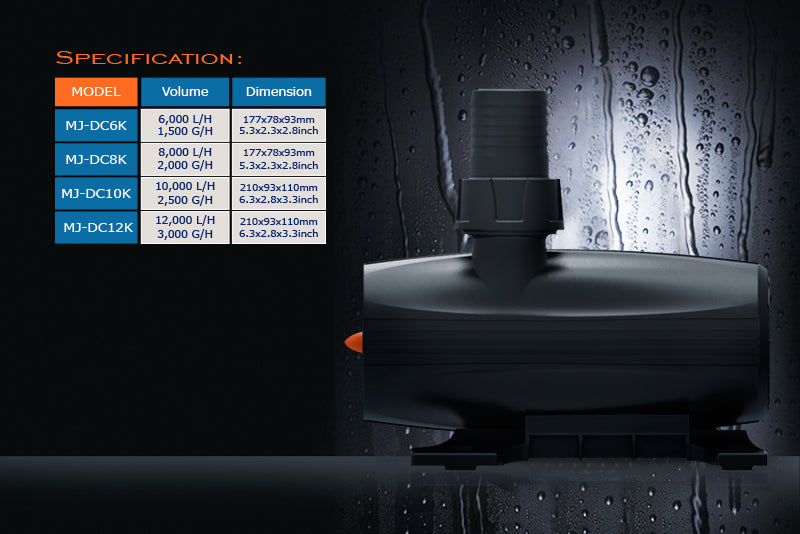

Model specifications

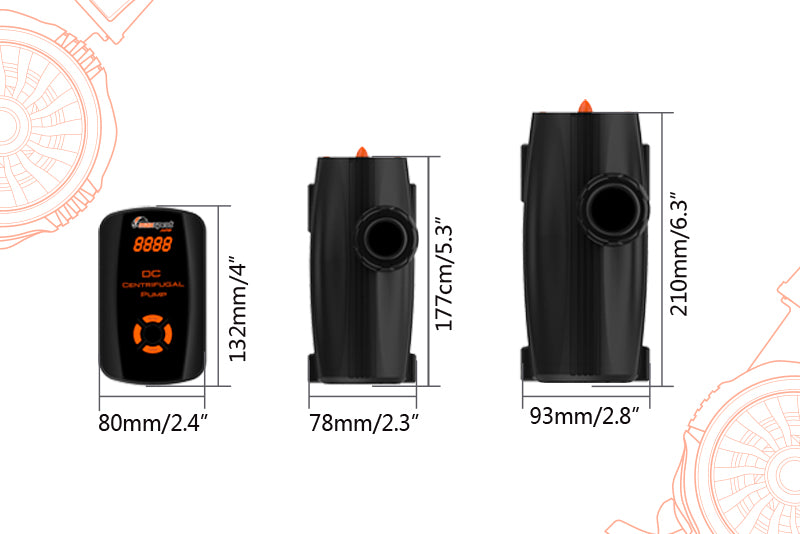

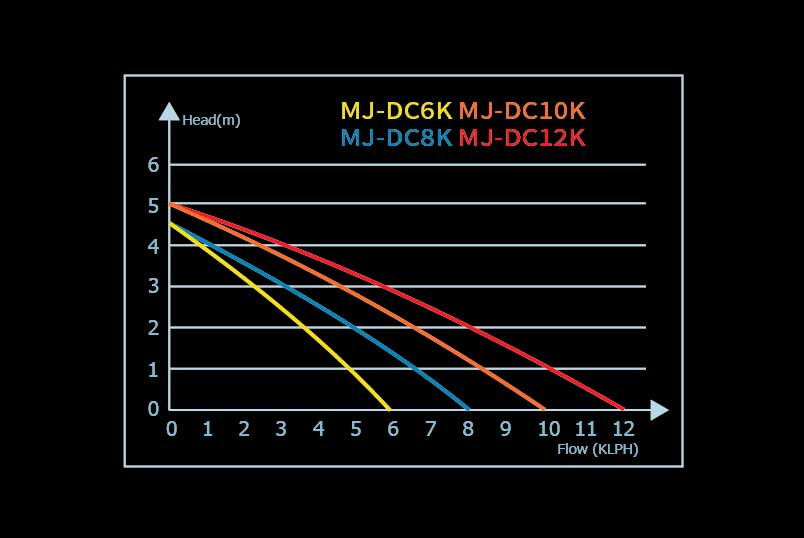

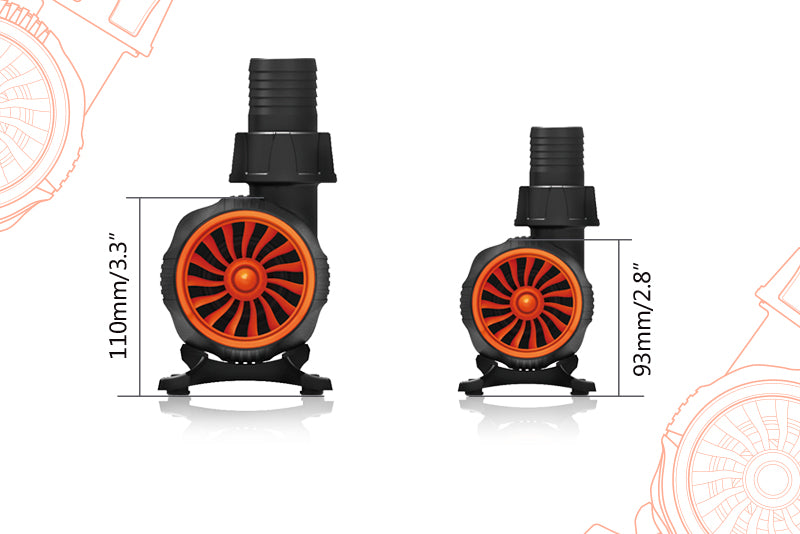

Model Flow Range Power Max Head Connections Dimensions
DC6K 740–1,585 GPH 70W 14 ft (4.5m) 1" & 1-1/4" 6.97"L x 3.66"W x 3.07"H
DC8K 898–2,113 GPH 90W 14 ft (4.5m) 1" & 1-1/4" 6.97"L x 3.66"W x 3.07"H
DC10K 1,057–2,642 GPH 100W 16 ft (5m) 1-1/4" & 1-1/2" 8.27"L x 4.33"W x 3.66"H

Voltage: DC24V. Compatible with freshwater and saltwater aquariums. Submersible installation only.

Key features

  • Sine Wave DC drive for quiet, low-vibration operation
  • 20 adjustable flow speed settings via external controller
  • Pulse/wave mode for natural, simulated tidal flow
  • Programmable feed mode pauses/reduces flow for easy feeding
  • No app, Bluetooth, or WiFi required — simple 4-button control with LED display
  • Dual union connections for flexible plumbing sizing

Source: manufacturer specifications, maxspect.com.
